Exporting List or Library in Excel Report using custom web part

To export the list or library in excel sheet, we have to do the following points:

- pull the items from list or library and Drop it in grid view.

- create a button for Click event to export the Excel sheet

- create override render function for Exporting the Excel sheet

* Pull the items from list or library and Drop it in grid view

C# Code To display The Library & List Items:

SPWeb objWeb;

SPSite objSpSite;

SPList oList;

objSpSite = SPContext.Current.Site;

objWeb = objSpSite.OpenWeb();

oList = objWeb.Lists["GBMListNew"];

SPView objView = oList.Views["All Documents"];

SPListItemCollection collItem = oList.GetItems(objView);

DataTable dtSponsorships = collItem.GetDataTable();

gvGBMFormLib.DataSource = dtSponsorships;

gvGBMFormLib.DataBind();

Client Side Code:

<asp:GridView ID="gvGBMFormLib" runat="server" Visible ="true" >

</asp:GridView>

* create a button for Click event to export the Excel sheet

<asp:Button ID="btnexcel" runat="server" Text="Export to Excel"

CssClass="ms-ButtonHeightWidth" Visible="true" onclick="btnexcel_Click" />

* create override render function for exporting the Excel sheet

Declare bExport as global variable (Eg: private bool bExport = false)

Add the code in server Side:

protected override void Render(HtmlTextWriter writer)

{

if (Page != null)

{

if (bExport)

{

string stFileName = "AmexSummaryReport_";

gvGBMFormLib.Visible = true;

this.bExport = false;

Page.Response.Clear();

Page.Response.Buffer = true;

Page.Response.ContentType = "application/ms-excel";

Page.Response.AddHeader("content-disposition", "attachment; filename=" + stFileName + DateTime.Now + ".xls");

Page.Response.Charset = "UTF-8";

DateTime ct = DateTime.Now;

string currentdate = Convert.ToString(ct);

HttpContext.Current.Response.Write("<b><h1 style='Text-align:left; padding-left:65px; color: #008000; font-weight: bold; font-style: normal; font-size: large'>GABM Full Excel Summary</b></h1>");

this.EnableViewState = false;

System.IO.StringWriter sw = new System.IO.StringWriter();

System.Web.UI.HtmlTextWriter htw = new System.Web.UI.HtmlTextWriter(sw);

gvGBMFormLib.RenderControl(htw);

Page.Response.Write(sw.ToString() + "<br/><br/><b>Report Date : " + currentdate + "</b>");

Page.Response.End();

}

base.Render(writer);

}

Creating Form Based Authentication (FBA) Using Membership IN MOSS 2010
Creating new FBA Site in Share point 2010

Steps:
A) Setting up ASP.NET Forms Authentication User and Role Data Source

· Create Database

· Configure Membership and Role Provider

· Create User

B) Create Web Application and Site Collections

C) Configure Web.Config file

· Configuring FBA web application web.config file

· Configuring Central Administration web application web.config file

· Configuring Security Token Service web.config file

D) Adding User Policy to the FBA Web Application

E) Verification Steps

A) Setting up ASP.NET Forms Authentication User and Role Data Source

* Create database:

Create database in sql server and do the following steps to add membership tables, functions, procedures to the database

1)Open visual studio command prompt(2010) form Visual studio 2010 ->visual studio tools. It will open as follows.

2) type aspnet_regsql in visual studio command prompt and press enter.

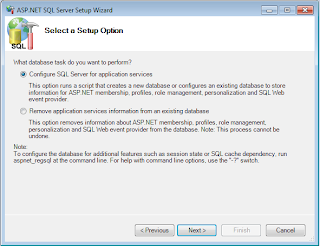

3) Following screen will open in window

4) Click Next in the asp.net sql server set up wizard, and

select configure sql application server for service radio button and click next.

5) type the server name , username & password for sql server authentication , and select the database name in dropdown and click next.

6) Click next and Click Finish to complete the setup wizard.

7) Check the database that specified in above wizard for membership tables & Procedures

* Configure Membership and Role Provider

Database is created successfully. Now we need to add a user in to database. Using ASP.NET Configuration Wizard, users can be added the database. This can be achieved by creating web site that will allow us to add the users and roles and also ensure the database connection strings, membership and role providers are correctly configured before we bring SharePoint in to equation.

Below steps explains creating web site and configuring membership and role providers and executing ASP.Net Configuration Wizard.

1) Open Visual Studio 2010 and select File -> New -> Web Site. In the New Web Site dialog, select the ASP.Net Web Site template and enter the location to store the web site files.

You can choose any location whichever is comfortable for you. web.config file will be added to project automatically.

2) By default, you will see a <connectionStrings/> node within <configuration> node. Specify the connection string to the database which has been created in the previous section.

Eg:

<add name="AspNetSqlProvider"

connectionString="Data Source=hvdatabase;Initial Catalog=FBA_Users;Persist Security Info=True;User ID=sa;Password=Hexacorp123;"

providerName="System.Data.SqlClient" />

</connectionStrings>

Also add the membership provider and role provider within <system.web> tag

Eg:

<system.web>

<add name="AspNetSqlMembershipProvider" connectionStringName="AspNetSqlProvider"

applicationName="/"

type="System.Web.Security.SqlMembershipProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />

</providers>

</membership>

<add connectionStringName="AspNetSqlProvider" applicationName="/"

description="Stores and retrieves roles data from the local Microsoft SQL Server database"

name="AspNetSqlRoleProvider" type="System.Web.Security.SqlRoleProvider, System.Web,Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />

</providers>

</roleManager>

</system.web>

3) Save web.config file and launch the ASP.Net Configuration Wizard by clicking on

Website -> ASP.Net Configuration.

Set the authentication type in the above wizard. To do this, click Security link. In the Security tab, under Users section, click Select authentication type link. Select From the internet option and press Done button which is available in the bottom right corner. By selecting this option, which means that site will use form authentication to identify users.

To test the membership and role providers, click on Provider tab. In the Provider tab, click on Select a different provider for each feature (advanced) link. Select right / correct membership and role provider and click Test link to ensure that providers are communicating to right database.

At this point, we configured web.config file with connection string and providers information. Also we tested the providers with the database

* Create User

To add users, click on Security tab. In Security tab, under Users section, click Create user link. Here I am adding user as testFBA and password as password which will be used for testing form authentication later.

Now we have created a user successfully

B) Steps to create web application and site collection.

Go to Central Administration -> Application Management -> Select ‘Manage Web Application’ link present under ‘Web Applications’ section.

Click on ‘New’ option in the ribbon.

1. See the below image for ‘Authentication’ and ‘IIS Web Site’ section.

2. See the below image for ‘Security Configuration’ and ‘Claims Authentication Type’ section

3. See the below image for configuring ‘Sign In Page URL’ and ‘Public URL’ section.

4. See the below image for configuring ‘Application Pool’ and ‘Database Name and Authentication’ section.

5. Create Site Collection after creating web application.

C) Configure Web.Config Files

1. Configuring FBA web application web.config file

Open FBA web application web.config file and add the below entries.

Go to Start => Run => inetmgr.
Go to Sites => SharePoint - site => Right Click => Explore.
Open the web.config file.
Add the Following

</connectionStrings>

</providers>

</membership>

</providers>

</roleManager>

2. Configuring Central Administration web application web.config file

Open Central Administration web application web.config file and add the below entries.

Go to Start => Run => inetmgr.
Go to Sites => SharePoint Central Adminstration=> Right Click => Explore.
Open the web.config file.
Add the Following

<add name="AspNetSqlProvider"

connectionString="Data Source=hvdatabase;Initial Catalog=FBA_Users;Persist Security Info=True;User ID=sa;Password=Hexacorp123;"

providerName="System.Data.SqlClient" />

</connectionStrings>

<system.web>

<add name="FBAMembership" connectionStringName="AspNetSqlProvider"

applicationName ="/" type="System.Web.Security.SqlMembershipProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />

</providers>

</membership>

<add name="FBARoles"

connectionStringName="AspNetSqlProvider"

applicationName="/"

type="System.Web.Security.SqlRoleProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />

</providers>

</roleManager>

</system.web>

3. Configuring Security Token Service web.config file

Open Security Token service web.config file and add the below entries

Go to Start => Run => inetmgr.
Go to Sites => SharePoint Web Services =>Security TokenServiceApplication => Right Click => Explore.
Open the web.config file.

<add name="AspNetSqlProvider"

connectionString="Data Source=hvdatabase;Initial Catalog=FBA_Users;Persist Security Info=True;User ID=sa;Password=Hexacorp123;"

providerName="System.Data.SqlClient" />

</connectionStrings>

<system.web>

<add name="FBAMembership" connectionStringName="AspNetSqlProvider"

applicationName ="/" type="System.Web.Security.SqlMembershipProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />

</providers>

</membership>

<add name="FBARoles"

connectionStringName="AspNetSqlProvider"

applicationName="/"

type="System.Web.Security.SqlRoleProvider, System.Web, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />

</providers>

</roleManager>

</system.web>

D) Adding User Policy to the FBA Web Application

Follow the below steps to add user policy to the web application.

a. Go to Central Administration ->Manage Web Applications -> Select the FBA web application and click on ‘User Policy’ option in the ribbon.

b. Click on ‘Add Users’ link and select ‘Default’ as the zone and click on ‘Next’ button.

c. Type the user name created in ‘Create User’ section in the ‘Users’ textbox and click on people picker icon. You should see the user name get underlined in the ‘Users’ textbox.
